Continue on dev.toCreating dynamic 3D scenes in web development can elevate your design, making it more engaging and interactive. In this guide, we'll explore the fundamentals of 3D transformations using CSS3. You'll learn about coordinate axes, perspective views, rotations, and scaling, and how to effectively apply these techniques to your web projects.

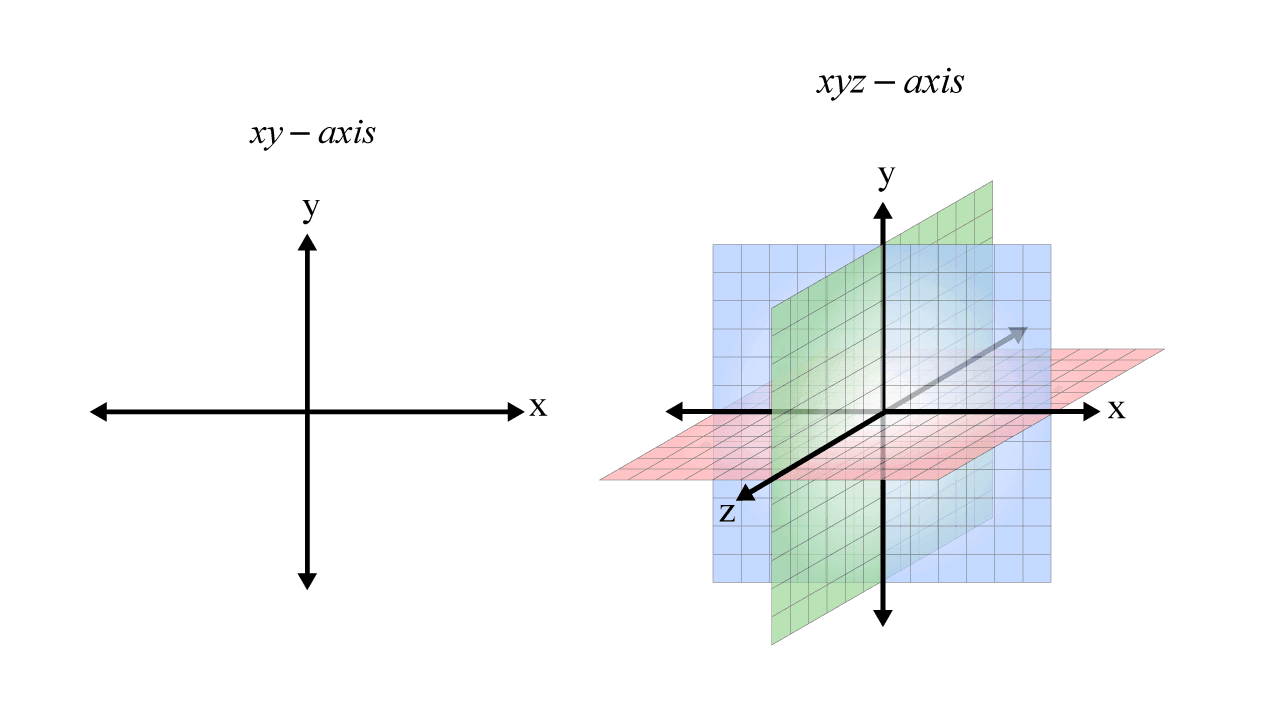

In 2D scenes, we work with the x-axis (horizontal) and y-axis (vertical). In 3D scenes, we introduce a third axis: the z-axis, which is perpendicular to the screen.
In CSS3, 3D transformations include several key functions:
translateZ() and translate3d(x, y, z)rotateX(), rotateY(), rotateZ(), and rotate3d()scaleZ() and scale3d()perspective(n) function or perspective propertyCSS3 provides the translateZ() and translate3d(x, y, z) functions for 3D translation. These functions allow you to move elements along the z-axis, giving the illusion of depth.
.element {
transform: translate3d(10px, 20px, 30px);
}In this example, the element is moved 10 pixels along the x-axis, 20 pixels along the y-axis, and 30 pixels along the z-axis.
For 3D rotations, CSS3 offers rotateX(), rotateY(), rotateZ(), and rotate3d(). These functions enable you to rotate elements around the x, y, or z axes, respectively.
.element {
transform: rotateX(30deg);
}This rotates the element 30 degrees around the x-axis. You can combine rotations around multiple axes for complex effects.

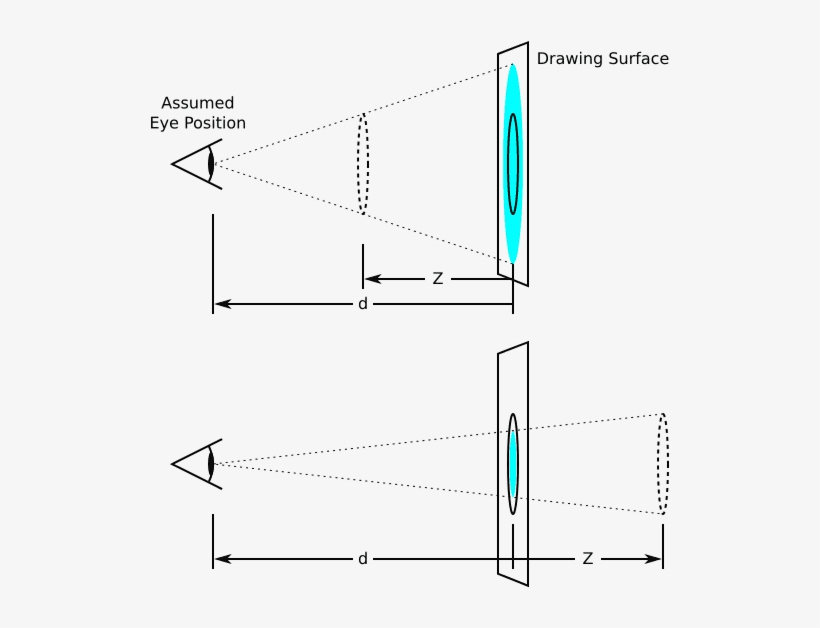

Perspective view, also known as depth of field, gives a sense of depth to 3D elements. Without perspective, elements will appear uniformly sized regardless of their distance from the viewer.
To create a sense of depth:
.container {
perspective: 1200px;
}
.element {
transform: perspective(1200px) translateZ(200px);
}Setting the perspective distance adjusts how the viewer perceives depth. The closer the perspective value (e.g., 900px), the more pronounced the depth effect.

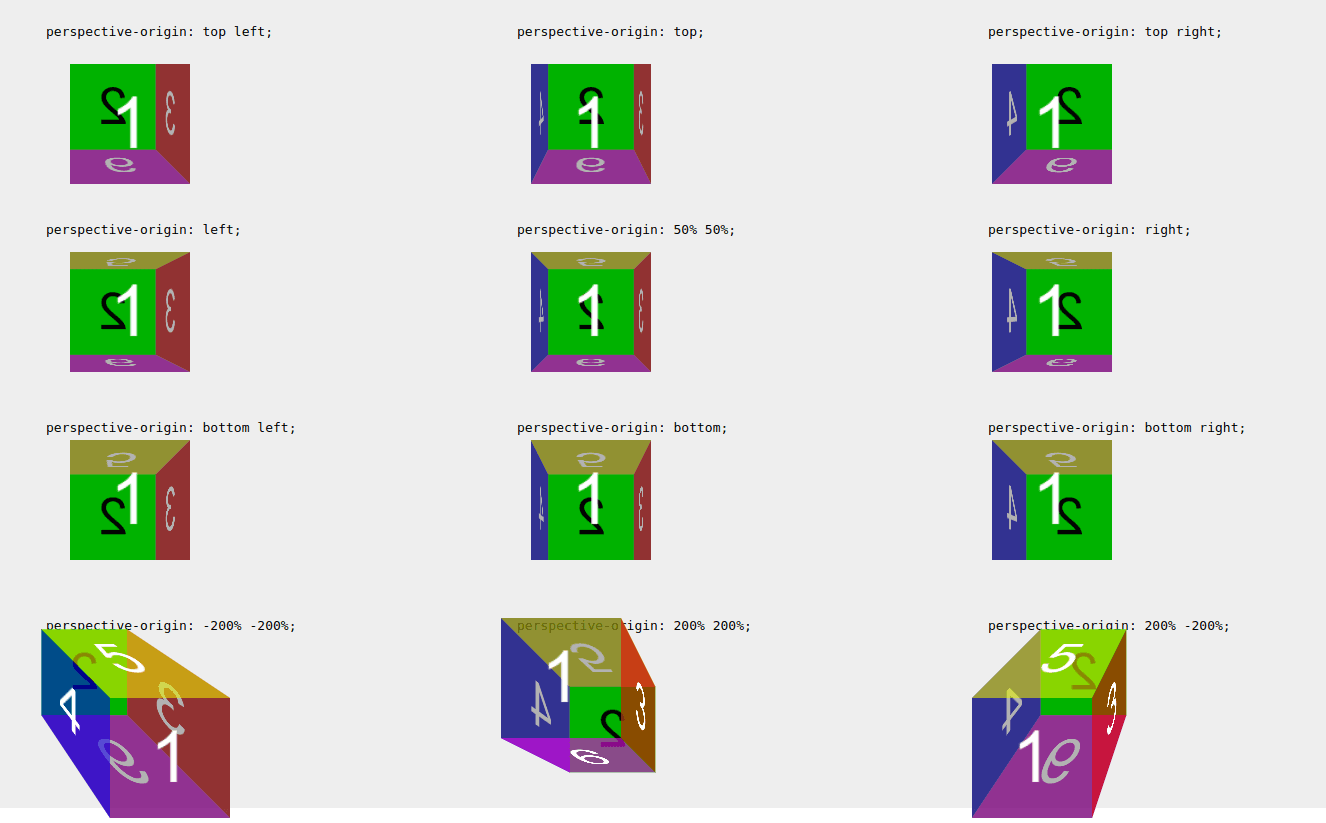

The perspective-origin property defines the viewpoint of the observer. By default, the z-axis is positioned at the center of the parent element.
.container {
perspective-origin: 50% 50%;
}You can adjust this property to change the observer's angle:
.container {
perspective-origin: left top;
}The rotateX(), rotateY(), and rotateZ() methods rotate an element around the respective axis.
.element {
transform: rotateX(30deg);
}For complex rotations, use rotate3d():
.element {
transform: rotate3d(1, 1, 1, 30deg);
}This rotates the element 30 degrees around a vector (1, 1, 1).
The transform-style property determines whether child elements maintain their 3D position.
.container {
transform-style: preserve-3d;
}This ensures that nested elements retain their 3D transformations.
The transform-origin property sets the point of origin for transformations.
.element {
transform-origin: 50% 50% 50px;
}This sets the transformation origin to the center of the element at 50px along the z-axis.
The scaleZ() and scale3d() functions scale an element in 3D space. Note that scaleZ() requires additional transformations to be visible.
.element {
transform: perspective(100px) scaleZ(2) translateZ(1px);
}This scales the element along the z-axis, making it appear larger or smaller.
To create a 3D effect, combine multiple transformations:
.box {
transform-style: preserve-3d;
perspective: 800px;
}
.center {
transform: scaleZ(10) rotateX(45deg);
}Or:
.box {
transform-style: preserve-3d;
}
.center {
transform: perspective(800px) scaleZ(10) rotateX(45deg);
}These examples demonstrate how to combine perspective, scaling, and rotation to create complex 3D effects.
Mastering CSS3 3D transformations allows you to create visually appealing and interactive web designs. By understanding and applying these techniques, you can add depth and dimension to your projects, enhancing the user experience.
